HBC-CP120 EH / ES
Busbar Cutting & Punching Machine 120 x 12 mm
Cuts and punches busbars up to 120 x 12 mm simultaneously, with two separate power packs and long roller desks.
HBC-CP160 EH / ES
Busbar Cutting & Punching Machine 160 x 15 mm
Simultaneous cutting and punching of busbars up to 160 x 15 mm.
- Function
- Cutting and Punching Busbars Simultaneously
- Cutting Capacity
- Up to 160 x 15 mm
- Punching Capacity
- Circle Dies: M6 up to M18; Oval and Rectangle Dies (Optional)
- Operating Pressure
- 200 Bar
Overview

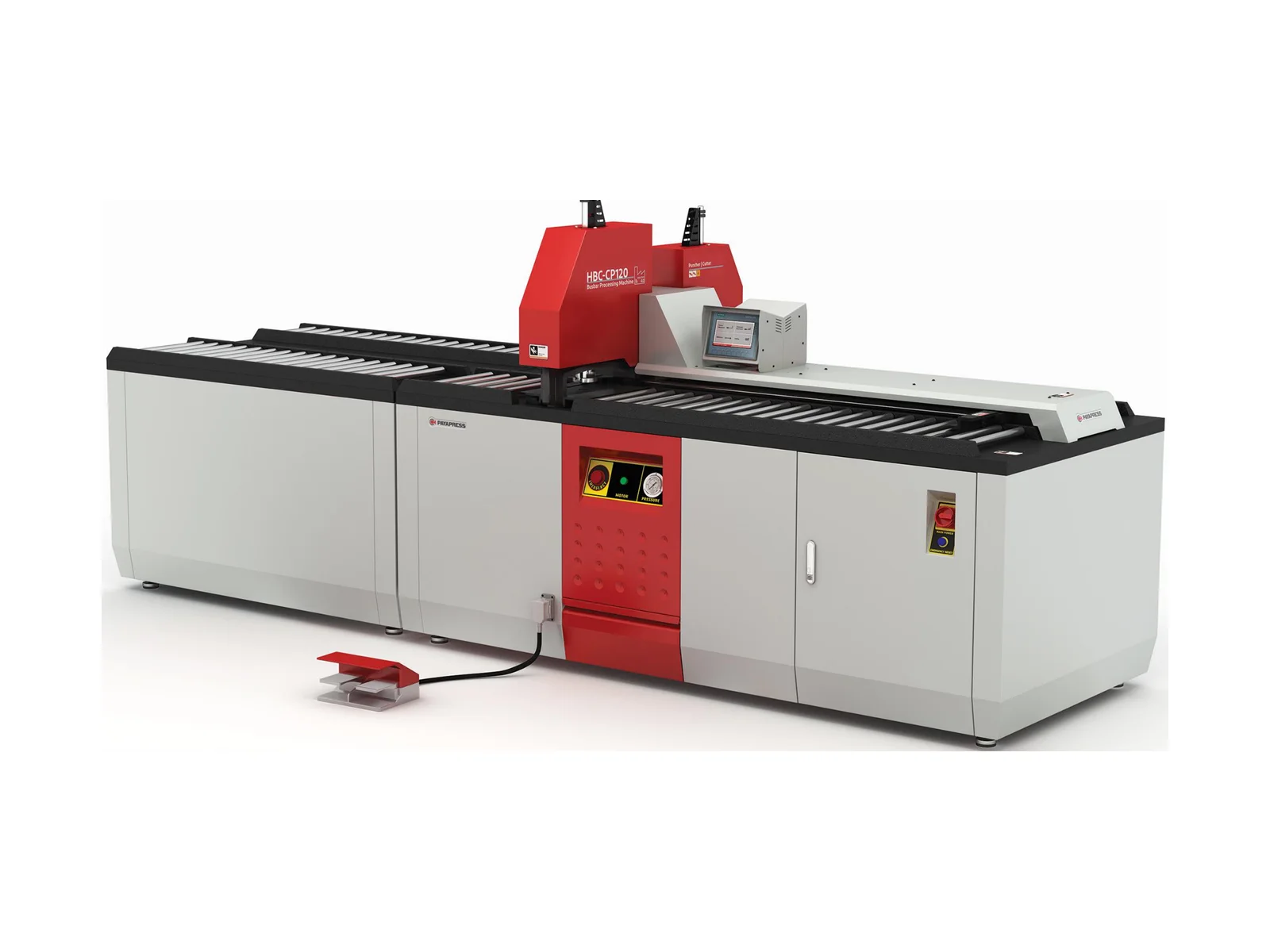

The HBC-CP160 cuts and punches busbars up to 160 x 15 mm, with two separate power packs and a 150 x 110 cm roller desk.
Key features
- Laser pointer finds the centre of holes
- Quick-change circle dies; oval and rectangle dies optional
- Movable stripper plate
- Double-acting hydraulics stop dies sticking in the busbar after punching
- Rollers on both sides of the puncher for easy busbar movement
- Precise cutting with a clean finish
- Centre-oriented guide
- Rollers on both sides of the cutter
- Handy length stopper (EH) with fine adjustment
- Programmable length stopper (ES): 20 positions, absolute or incremental
- Processes copper and aluminium busbars
- Industry 4.0 ready
Advantages
- Dedicated line for cutting and punching
- Handles 160 x 15 mm busbars
Technical Specifications
| Function | Cutting and Punching Busbars Simultaneously |
|---|---|
| Cutting Capacity | Up to 160 x 15 mm |
| Punching Capacity | Circle Dies: M6 up to M18; Oval and Rectangle Dies (Optional) |
| Puncher Center Finder | Laser Pointer |
| Length Measuring in Puncher and Cutter | Handy Length Stopper (EH); Programmable Length Stopper (ES) |
| Hydraulic System | Two Separate Power Packs, Double Acting System |
| Operating Pressure | 200 Bar |
| Power Rating | 2 x 2.2 Kw |
| Voltage | 380 Volt - 3/50 Hz |
| Oil | Hydraulic Oil H68 - 60 Liters |
| Main Desk Dimension | 250 x 110 x 100 (H) cm |
| Roller Desk Dimension | 150 x 110 cm |
Applications
- Electrical panel and switchboard manufacturing
- Switchgear and MCC panels
- Busduct and busway fabrication
- Power distribution and transformer connections
Related machines
HBC-A120 EH / ES
A Series Busbar Machine 120 x 12 mm
Cuts, punches and bends busbars up to 120 x 12 mm simultaneously, with three separate power packs.
HBC-A160 EH / ES
A Series Busbar Machine 160 x 15 mm
Simultaneous cutting, punching and bending of busbars up to 160 x 15 mm.
HBC-CP.CNC200
CNC Busbar Cutting & Punching Machine 200 x 15 mm
Fully automatic CNC punching and cutting of busbars up to 200 x 15 mm, with seven tool stations.
Request a quote for HBC-CP160 EH / ES
Tell us your busbar sizes, material and monthly quantity. We will reply with a technical and commercial offer.
