HBC-CP.CNC200

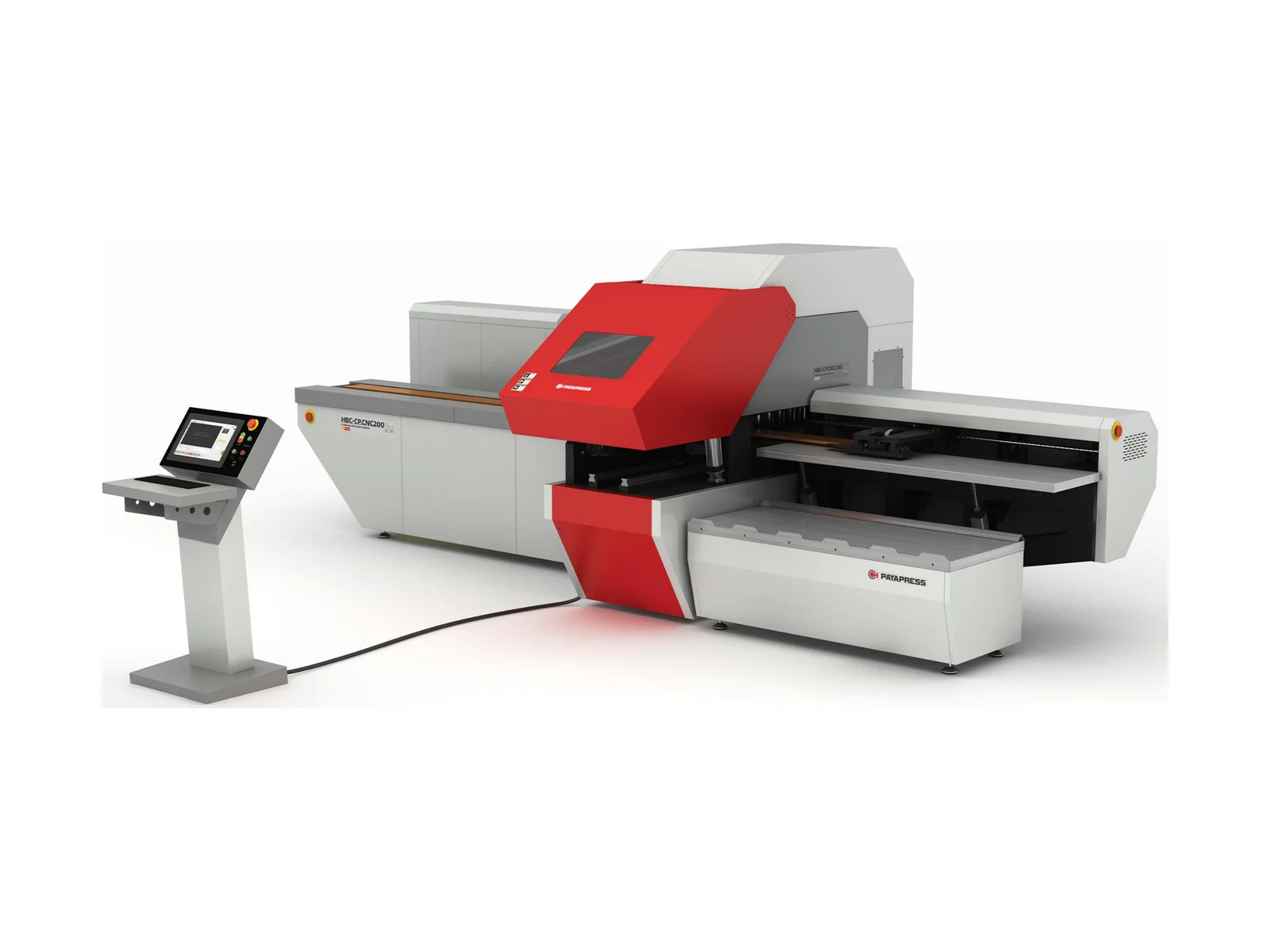

CNC Busbar Cutting & Punching Machine 200 x 15 mm

Fully automatic CNC punching and cutting of busbars up to 200 x 15 mm, with seven tool stations.

Function: Cutting and Punching Busbars Simultaneously
Cutting Capacity: Up to 200 x 15 mm
Punching Capacity: Busbar Size: 200 x 15 mm; Circle Dies: M6 up to M20
Operating Pressure: 200 Bar

Overview

The HBC-CP.CNC200 punches and cuts busbars at high speed and high precision. It has seven tool stations and handles busbars 4 metres long and 15 mm thick.

The linear tool carrier (y-axis) holds six punching tools and one cutting tool, and punches and dies can be changed quickly. Once the job is started the machine runs fully automatically.

Key features

Seven tool stations: six punching and one cutting
CNC controller for fast, accurate hole punching
Ball screw and servo motor positioning
Handles busbars 4 m long and 15 mm thick
Fully automatic once the job starts
Processes copper and aluminium busbars
Industry 4.0 ready

Advantages

Highest speed and accuracy in the range
One operator runs the whole line
Punches and dies change quickly

Technical Specifications

Technical Specifications of HBC-CP.CNC200 CNC Busbar Cutting & Punching Machine 200 x 15 mm
Function	Cutting and Punching Busbars Simultaneously
Cutting Capacity	Up to 200 x 15 mm
Punching Capacity	Busbar Size: 200 x 15 mm; Circle Dies: M6 up to M20
Puncher Center Finder	CNC Controller
Length Measuring in Puncher and Cutter	Ball Screw and Servo Motors
Hydraulic System	One Power Pack, Double Acting System
Max Force	400 kN
Operating Pressure	200 Bar
Power Rating	1 x 11 Kw
Voltage	380 Volt - 3/50 Hz
Oil	Hydraulic Oil H68 - 290 Liters
Main Desk Dimension	537 x 240 x 188 (H) cm
