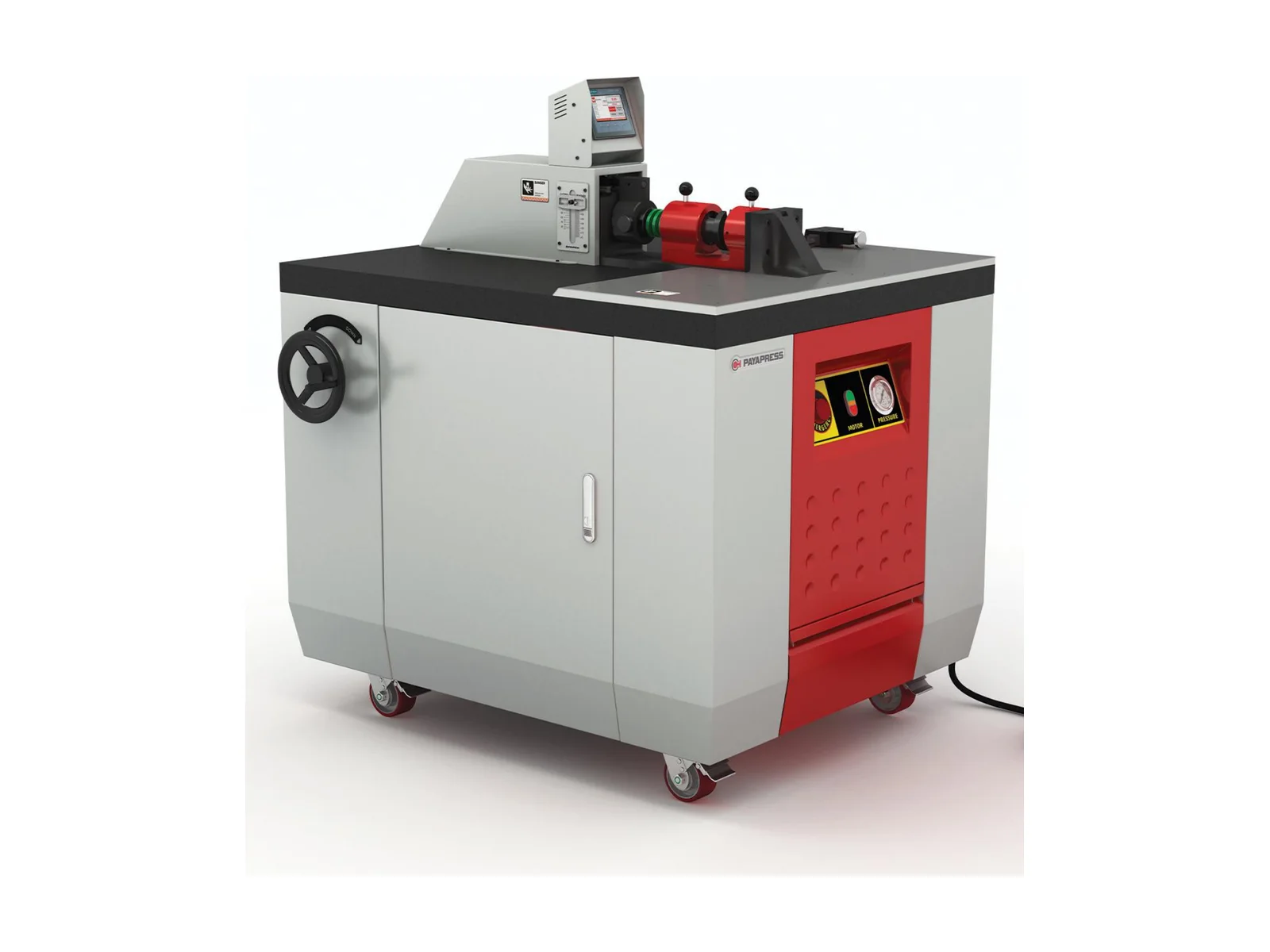

HBC-PC120 EH
Workshop Busbar & Cable Machine 120 x 12 mm
Compact workshop machine that cuts, punches and bends busbars one by one, with optional cable crimping and cutting.
- Function
- Cutting, Punching and Bending Busbars One by One; Crimping/Cutting Cable (Optional)
- Bender Capacity
- Up to 120 x 12 mm
- Cutting Capacity
- Up to 120 x 12 mm
- Punching Capacity
- Circle Dies: M6, M8, M10, M12, M14, M16, M18; Crimping/Cutting Size: up to 240 mm2
Overview
The HBC-PC120 EH covers cutting, punching and bending by changing tools on one head. Optional crimping and cable-cutting heads handle cables up to 240 mm2.
It runs on a 220 V single-phase supply and sits on castors, so it fits small workshops and site work.
Key features
- Interchangeable heads for cutting, punching and bending
- Optional cable crimping and cutting up to 240 mm2
- Electronic bender controller with high-accuracy encoder
- Laser pointer for punching
- Runs on 220 V single-phase supply
- Processes copper and aluminium busbars
- Industry 4.0 ready
Advantages
- Smallest footprint in the range
- Busbar and cable work on one machine
Technical Specifications
| Function | Cutting, Punching and Bending Busbars One by One; Crimping/Cutting Cable (Optional) |
|---|---|
| Bender Capacity | Up to 120 x 12 mm |
| Cutting Capacity | Up to 120 x 12 mm |
| Punching Capacity | Circle Dies: M6, M8, M10, M12, M14, M16, M18; Crimping/Cutting Size: up to 240 mm2 |
| Crimping Cable Capacity | Up to 240 mm2 |
| Cutting Cable | Up to 240 mm2 |
| Bender Controller | Electronic Controller, High Accuracy Encoder |
| Hydraulic System | One Power Pack, Double Acting System |
| Puncher Laser Finder | Laser Pointer |
| Operating Pressure | 200 Bar |
| Power Rating | 1 x 1.5 Kw |
| Voltage | 220 Volt - 1/50 Hz |
| Oil | Hydraulic Oil H68 - 30 Liters |
| Main Desk Dimension | 100 x 120 x 101 (H) cm |
Applications
- Electrical panel and switchboard manufacturing
- Switchgear and MCC panels
- Busduct and busway fabrication
- Power distribution and transformer connections
Related machines
HBC-EB120 EH
Economic Busbar Machine 120 x 12 mm, One by One
Economic 3-in-1 machine for busbars up to 120 x 12 mm, used one station at a time.
HBC-A120 EH / ES
A Series Busbar Machine 120 x 12 mm
Cuts, punches and bends busbars up to 120 x 12 mm simultaneously, with three separate power packs.
HBC-A160 EH / ES
A Series Busbar Machine 160 x 15 mm
Simultaneous cutting, punching and bending of busbars up to 160 x 15 mm.
Questions about this machine
Can the HBC-PC120 crimp cables?
Yes, with the optional crimping and cable-cutting heads it handles cables up to 240 mm2.
